PQA 2300

What has long been standard practice for incoming material inspections now safeguards your electrical supply: The PQA 2300 – The precise incoming inspection for your power quality

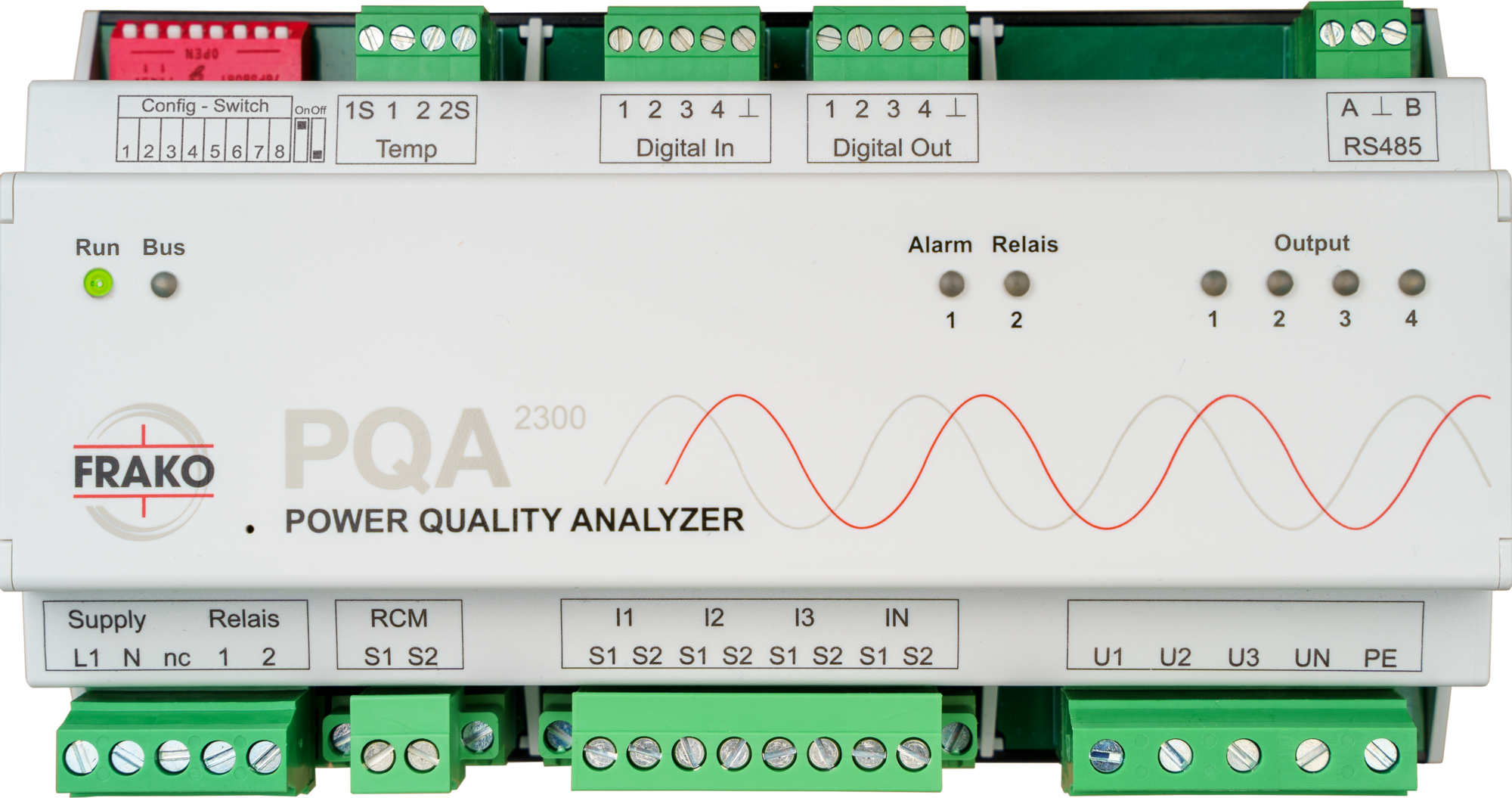

The Power Quality Analyzer PQA 2300 is a high-performance Power Quality Analyzer designed for the continuous monitoring, analysis, and documentation of power quality in three-phase low-voltage networks. It measures all relevant electrical network parameters, detects critical power quality events at an early stage, and helps ensure reliable, efficient, and uninterrupted operation of your electrical systems.
With its integrated web interface, comprehensive communication interfaces, and standards-compliant power quality analysis, the PQA 2300 integrates seamlessly into existing FRAKO Energy Management Systems. This gives you complete transparency over your power supply, allowing you to identify disturbances before they result in costly downtime.


Making Power Quality Visible...

  • Continuous power quality monitoring
  • Early detection of critical power quality events
  • Helps prevent unplanned downtime
  • Greater transparency across the electrical power supply system
  • Support for analysis, documentation and optimization

Enhancing Operational Reliability

  • Easy integration into existing FRAKO Energy Management Systems
  • Convenient configuration via the integrated web interface
  • Easy replacement of existing EM-PQ 2300 systems
  • Visualization via FRAKO PQ-Display or PC


Key Features at a Glance:

  • Continuous monitoring and evaluation of power quality
  • Early detection of voltage dips, overvoltages, transients, and other power quality events
  • Measurements compliant with EN 61000-4-30 and harmonic analysis according to EN 61000-4-7
  • Standards-compliant reports according to EN 50160, EN 61000-2-2, and EN 61000-2-4
  • Integrated web-based configuration and visualization interface
  • Freely configurable alarm thresholds and alarm functions
  • Communication interfaces:
  • Ethernet
  • Modbus RTU
  • FRAKO Bus
  • REST API
  • Seamless integration into FRAKO Energy Management Systems
  • Visualization via PC or the FRAKO PQ-Display
  • Ideal replacement for existing EM-PQ 2300 systems

       Electrical Parameters

  • Phase-to-neutral voltages (L-N)
  • Phase-to-phase voltages (L-L)
  • Neutral-to-protective-earth voltage (N-PE)
  • Phase currents and neutral current
  • Active power, reactive power, apparent power
  • Power factor (cos φ)

  • Line frequency

    Power Quality Analysis

  • Total Harmonic Distortion (THD) of voltage and current
  • Harmonics up to the 50th order
  • Interharmonics up to the 51st order
  • Voltage symmetry and unbalance analysis

  • Phase sequence detection

    Energy Measurement

  • Active energy, reactive energy, apparent energy
  • Separate metering of imported and exported energy
  • Resettable energy counters

  • Long-term recording of all relevant electrical parameters
    • Logging intervals: 3 seconds, 10 minutes, 15 minutes, 1 day
    • Storage of: Voltage values, current values, power values, energy values, line frequency, temperature values
  • Recording of harmonics and power quality events
  • Event memory for: Voltage dips, overvoltages, interruptions, transients
  • Disturbance recorder with freely configurable trigger settings, including pre-trigger and post-trigger recording
  • 200 ms extreme value calculation for detailed power quality analysis
